ABB i-bus® KNX
Security – Alarm System GMA

Ethernet connection for programming, diagnos-
tics and operation via a standard webbrowser

Direct inputs for security sensors

Keypads

Internal, external or remote alarming

Security bus for security sensors, zone modules
and setting devices

KNX interface to display alarm states via displays
of building automation and to control automatic
building functions with support of security sen-
sors.

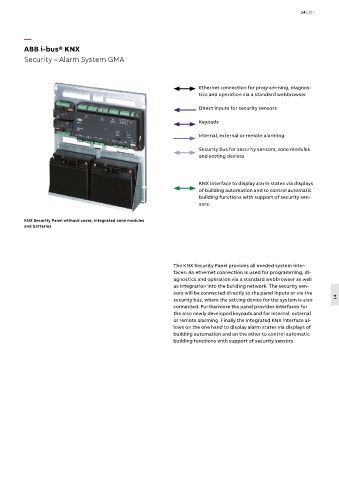

KNX Security Panel without cover, integrated zone modules
and batteries

The KNX Security Panel provides all needed system inter-
faces: An ethernet connection is used for programming, di-
agnostics and operation via a standard webbrowser as well
as integration into the building network. The security sen-
sors will be connected directly to the panel inputs or via the
security bus, where the setting device for the system is also 14
connected. Furthermore the panel provides interfaces for
the also newly developed keypads and for internal, external
or remote alarming. Finally the integrated KNX interface al-
lows on the one hand to display alarm states via displays of
building automation and on the other to control automatic
building functions with support of security sensors.
