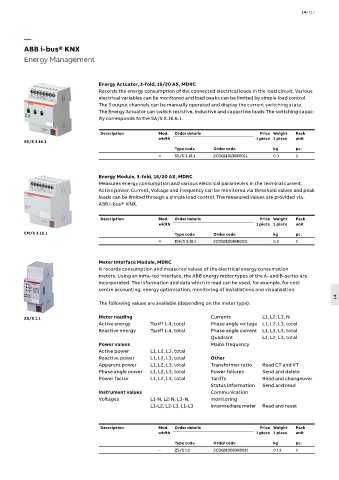

ABB i-bus® KNX
Energy Management
Energy Actuator, 3-fold, 16/20 AX, MDRC
Records the energy consumption of the connected electrical loads in the load circuit. Various
electrical variables can be monitored and load peaks can be limited by simple load control.
The 3 output channels can be manually operated and display the current switching state.
The Energy Actuator can switch resistive, inductive and capacitive loads The switching capac-
ity corresponds to the SA/S X.16.6.1.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
SE/S 3.16.1
Type code Order code kg pc.
4 SE/S 3.16.1 2CDG110136R0011 0.3 1
Energy Module, 3-fold, 16/20 AX, MDRC
Measures energy consumption and various electrical parameters in the terminal current.
Active power, Current, Voltage and Frequency can be monitored via threshold values and peak
loads can be limited through a simple load control. The measured values are provided via
ABB i-bus® KNX.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
EM/S 3.16.1 Type code Order code kg pc.
4 EM/S 3.16.1 2CDG110148R0011 0.2 1
Meter Interface Module, MDRC
It records consumption and measured values of the electrical energy consumption
meters. Using an infra-red interface, the ABB energy meter types of the A- and B-series are
incorporated. The information and data which is read can be used, for example, for cost
centre accounting, energy optimisation, monitoring of installations and visualisation.
14
The following values are available (depending on the meter type):
ZS/S 1.1 Meter reading Currents L1, L2, L3, N
Active energy Tariff 1-4, total Phase angle voltage L1, L2, L3, total
Reactive energy Tariff 1-4, total Phase angle current L1, L2, L3, total
Quadrant L1, L2, L3, total
Power values Mains frequency
Active power L1, L2, L3, total
Reactive power L1, L2, L3, total Other
Apparent power L1, L2, L3, total Transformer ratio Read CT and VT
Phase angle power L1, L2, L3, total Power failures Send and delete
Power factor L1, L2, L3, total Tariffs Read and change over
Status information Send and read
Instrument values Communication
Voltages L1-N, L2-N, L3-N, monitoring
L1-L2, L2-L3, L1-L3 Intermediate meter Read and reset
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– ZS/S 1.1 2CDG110083R0011 0.13 1
