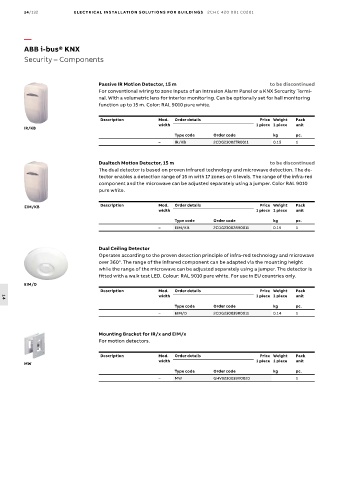

14/132 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Security – Components

Passive IR Motion Detector, 15 m to be discontinued
For conventional wiring to zone inputs of an Intrusion Alarm Panel or a KNX Sercurity Termi-
nal. With a volumetric lens for interior monitoring. Can be optionally set for hall monitoring
function up to 15 m. Color: RAL 9010 pure white.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
IR/KB
Type code Order code kg pc.
– IR/KB 2CDG230027R0011 0.15 1

Dualtech Motion Detector, 15 m to be discontinued
The dual detector is based on proven infrared technology and microwave detection. The de-
tector enables a detection range of 15 m with 17 zones on 6 levels. The range of the infra-red
component and the microwave can be adjusted separately using a jumper. Color RAL 9010
pure white.

EIM/KB Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– EIM/KB 2CDG230028R0011 0.15 1

Dual Ceiling Detector
Operates according to the proven detection principle of infra-red technology and microwave
over 360°. The range of the infrared component can be adapted via the mounting height
while the range of the microwave can be adjusted separately using a jumper. The detector is
fitted with a walk test LED. Colour: RAL 9010 pure white. For use in EU countries only.
EIM/D
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
14
Type code Order code kg pc.
– EIM/D 2CDG230039R0011 0.14 1

Mounting Bracket for IR/x and EIM/x
For motion detectors.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
MW
Type code Order code kg pc.
– MW GHV9230039V0020 1
