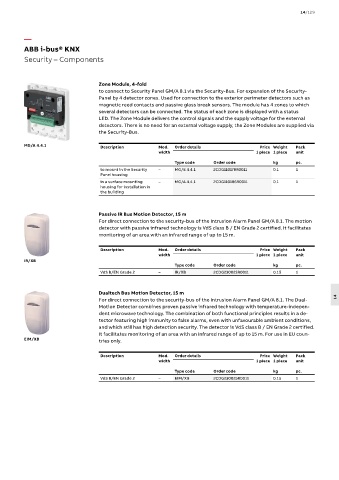

ABB i-bus® KNX
Security – Components

Zone Module, 4-fold
to connect to Security Panel GM/A 8.1 via the Security-Bus. For expansion of the Security-
Panel by 4 detector zones. Used for connection to the exterior perimeter detectors such as
magnetic reed contacts and passive glass break sensors. The module has 4 zones to which
several detectors can be connected. The status of each zone is displayed with a status
LED. The Zone Module delivers the control signals and the supply voltage for the external
detectors. There is no need for an external voltage supply, the Zone Modules are supplied via
the Security-Bus.

MG/A 4.4.1 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
to mount in the Security – MG/E 4.4.1 2CDG110178R0011 0.1 1
Panel housing
in a surface mounting – MG/A 4.4.1 2CDG110186R0011 0.1 1
housing for installation in
the building

Passive IR Bus Motion Detector, 15 m
For direct connection to the security-bus of the Intrusion Alarm Panel GM/A 8.1. The motion
detector with passive infrared technology is VdS class B / EN Grade 2 certified. It facilitates
monitoring of an area with an infrared range of up to 15 m.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
IR/XB
Type code Order code kg pc.
VdS B/EN Grade 2 – IR/XB 2CDG230023R0011 0.15 1

Dualtech Bus Motion Detector, 15 m
For direct connection to the security-bus of the Intrusion Alarm Panel GM/A 8.1. The Dual- 14
Motion Detector combines proven passive infrared technology with temperature-indepen-
dent microwave technology. The combination of both functional principles results in a de-
tector featuring high immunity to false alarms, even with unfavourable ambient conditions,
and which still has high detection security. The detector is VdS class B / EN Grade 2 certified.
It facilitates monitoring of an area with an infrared range of up to 15 m. For use in EU coun-
EIM/XB tries only.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
VdS B/EN Grade 2 – EIM/XB 2CDG230025R0011 0.15 1
