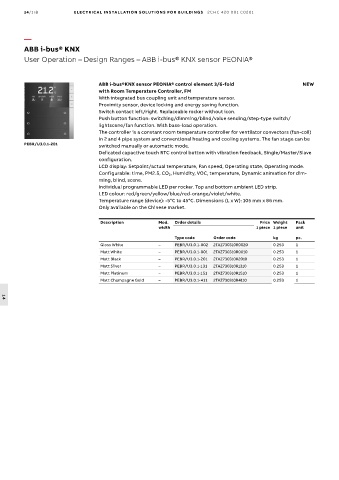

14/178 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges – ABB i-bus® KNX sensor PEONIA®

ABB i-bus®KNX sensor PEONIA® control element 3/6-fold NEW
with Room Temperature Controller, FM
With integrated bus coupling unit and temperature sensor.
Proximity sensor, device locking and energy saving function.
Switch contact left/right. Replaceable rocker without icon.
Push button function: switching/dimming/blind/value sending/step-type switch/
lightscene/fan function. With base-load operation.
The controller is a constant room temperature controller for ventilator convectors (fan-coil)
in 2 and 4 pipe system and conventional heating and cooling systems. The fan stage can be
PEBR/U3.0.1-201 switched manually or automatic mode.
Delicated capactive touch RTC control button with vibration feedback, Single/Master/Slave
configuration.
LCD display: Setpoint/actual temperature, Fan speed, Operating state, Operating mode.
Configurable: time, PM2.5, CO 2 , Humidity, VOC, temperature, Dynamic animation for dim-
ming, blind, scene.
Individual programmable LED per rocker. Top and bottom ambient LED strip.
LED colour: red/green/yellow/blue/red-orange/violet/white.
Temperature range (device): -5°C to 45°C. Dimensions (L x W): 105 mm x 86 mm.
Only available on the Chinese market.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
Gloss White – PEBR/U3.0.1-002 2TAZ730310R0020 0.253 1
Matt White – PEBR/U3.0.1-001 2TAZ730310R0010 0.253 1
Matt Black – PEBR/U3.0.1-201 2TAZ730310R2010 0.253 1
Matt Silver – PEBR/U3.0.1-131 2TAZ730310R1310 0.253 1
Matt Platinum – PEBR/U3.0.1-151 2TAZ730310R1510 0.253 1
Matt Champagne Gold – PEBR/U3.0.1-411 2TAZ730310R4110 0.253 1

14
