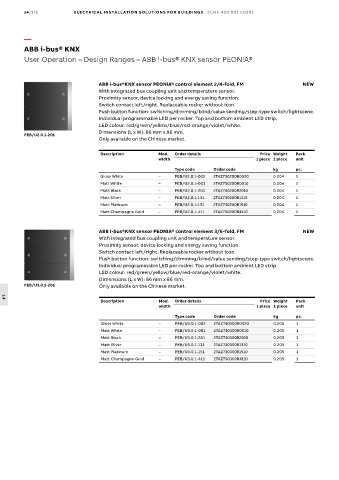

P. 1990

14/176           ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201




          —
          ABB i-bus® KNX
          User Operation – Design Ranges – ABB i-bus® KNX sensor PEONIA®




                                    ABB i-bus®KNX sensor PEONIA® control element 2/4-fold, FM              NEW
                                    With integrated bus coupling unit and temperature sensor.
                                    Proximity sensor, device locking and energy saving function.
                                    Switch contact left/right. Replaceable rocker without icon.
                                    Push button function: switching/dimming/blind/value sending/step-type switch/lightscene.
                                    Individual programmable LED per rocker. Top and bottom ambient LED strip.
                                    LED colour: red/green/yellow/blue/red-orange/violet/white.
                                    Dimensions (L x W): 86 mm x 86 mm.
          PEB/U2.0.1-201
                                    Only available on the Chinese market.

                                    Description          Mod.  Order details                Price Weight  Pack
                                                         width                             1 piece 1 piece  unit
                                                              Type code     Order code           kg      pc.
                                    Gloss White          –    PEB/U2.0.1-002  2TAZ730200R0020    0.204   1
                                    Matt White           –    PEB/U2.0.1-001  2TAZ730200R0010    0.204   1
                                    Matt Black           –    PEB/U2.0.1-201  2TAZ730200R2010    0.204   1
                                    Matt Silver          –    PEB/U2.0.1-131  2TAZ730200R1310    0.204   1
                                    Matt Platinum        –    PEB/U2.0.1-151  2TAZ730200R1510    0.204   1
                                    Matt Champagne Gold  –    PEB/U2.0.1-411  2TAZ730200R4110    0.204   1


                                    ABB i-bus®KNX sensor PEONIA® control element 3/6-fold, FM              NEW
                                    With integrated bus coupling unit and temperature sensor.
                                    Proximity sensor, device locking and energy saving function.
                                    Switch contact left/right. Replaceable rocker without icon.
                                    Push button function: switching/dimming/blind/value sending/step-type switch/lightscene.
                                    Individual programmable LED per rocker. Top and bottom ambient LED strip.
                                    LED colour: red/green/yellow/blue/red-orange/violet/white.
                                    Dimensions (L x W): 86 mm x 86 mm.
          PEB/U3.0.1-201            Only available on the Chinese market.

                                    Description          Mod.  Order details                Price Weight  Pack
  14
                                                         width                             1 piece 1 piece  unit
                                                              Type code     Order code           kg      pc.
                                    Gloss White          –    PEB/U3.0.1-002  2TAZ730300R0020    0.205   1
                                    Matt White           –    PEB/U3.0.1-001  2TAZ730300R0010    0.205   1
                                    Matt Black           –    PEB/U3.0.1-201  2TAZ730300R2010    0.205   1
                                    Matt Silver          –    PEB/U3.0.1-131  2TAZ730300R1310    0.205   1
                                    Matt Platinum        –    PEB/U3.0.1-151  2TAZ730300R1510    0.205   1
                                    Matt Champagne Gold  –    PEB/U3.0.1-411  2TAZ730300R4110    0.205   1
