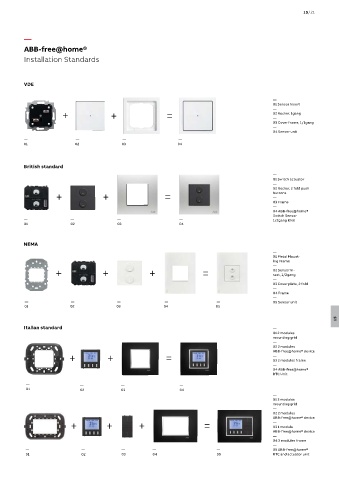

ABB-free@home®
Installation Standards

VDE

—
01 Sensor insert
—
+ + = 02 Rocker, 1gang
—
03 Cover frame, 1/1gang
—
04 Sensor unit
— — — —
01 02 03 04

British standard
—
01 Switch actuator
—
02 Rocker, 2 fold push
+ + = buttons
—
03 Frame
—
04 ABB-free@home®
Switch Sensor
— — — — 1/2gang KNX
01 02 03 04

NEMA
—
01 Metal Mount-
ing Frame
—
+ + + = 02 Sensor in-
sert, 1/2gang
—
03 Cover plate, 2 fold
—
04 Frame
—
— — — — — 05 Sensor unit
01 02 03 04 05
15
Italian standard —
01 2 modules
mounting grid
—
02 2 modules
ABB-free@home® device
+ + = —
03 2 modules frame
—
04 ABB-free@home®
RTC Unit
— — — —
01 02 03 04
—
01 3 modules
mounting grid
—
02 2 modules
ABB-free@home® device
+ + + = —
03 1 module
ABB-free@home® device
—
04 3 modules frame
—
— — — — — 05 ABB-free@home®
01 02 03 04 05 RTC and actuator unit
