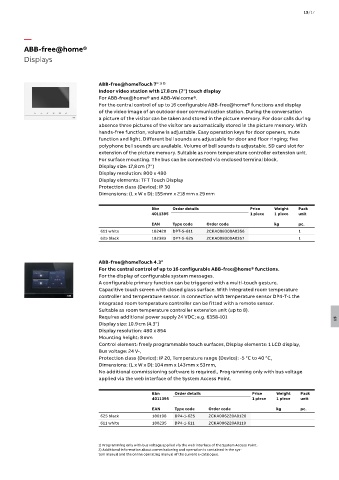

15/17

—
ABB-free@home®
Displays

ABB-free@homeTouch 7" 1) 2)
Indoor video station with 17.8 cm (7") touch display
For ABB-free@home® and ABB-Welcome®.
For the central control of up to 16 configurable ABB-free@home® functions and display
of the video image of an outdoor door communication station. During the conversation
a picture of the visitor can be taken and stored in the picture memory. For door calls during
absence three pictures of the visitor are automatically stored in the picture memory. With
hands-free function, volume is adjustable. Easy operation keys for door openers, mute
function and light. Different bell sounds are adjustable for door and floor ringing; five
polyphone bell sounds are available. Volume of bell sounds is adjustable. SD card slot for
extension of the picture memory. Suitable as room temperature controller extension unit.
For surface mounting. The bus can be connected via enclosed terminal block.
Display size: 17,8 cm (7")
Display resolution: 800 x 480
Display elements: TFT Touch Display
Protection class (Device): IP 30
Dimensions: (L x W x D): 155 mm x 218 mm x 29 mm

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
611 white 182420 DP7-S-611 2CKA008300A0356 1
625 black 182383 DP7-S-625 2CKA008300A0357 1

ABB-free@homeTouch 4.3"
For the central control of up to 16 configurable ABB-free@home® functions.
For the display of configurable system messages.
A configurable primary function can be triggered with a multi-touch gesture.
Capacitive touch screen with closed glass surface. With integrated room temperature
controller and temperature sensor. In connection with temperature sensor DP4-T-1 the
integrated room temperature controller can be fitted with a remote sensor.
Suitable as room temperature controller extension unit (up to 8).
Requires additional power supply 24 VDC; e.g. 6358-101 15
Display size: 10.9 cm (4.3")
Display resolution: 480 x 854
Mounting height: 8 mm
Control element: freely programmable touch surfaces, Display elements: 1 LCD display,
Bus voltage: 24 V-,
Protection class (Device): IP 20, Temperature range (Device): -5 °C to 40 °C,
Dimensions: (L x W x D): 104 mm x 143 mm x 53 mm,
No additional commissioning software is required., Programming only with bus voltage
applied via the web interface of the System Access Point.

Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit
EAN Type code Order code kg pc.
625 black 180198 DP4-1-625 2CKA006220A0120
611 white 180235 DP4-1-611 2CKA006220A0119

1) Programming only with bus voltage applied via the web interface of the System Access Point.
2) Additional information about commissioning and operation is contained in the sys-
tem manual and the online operating manual of the current e-catalogue.
