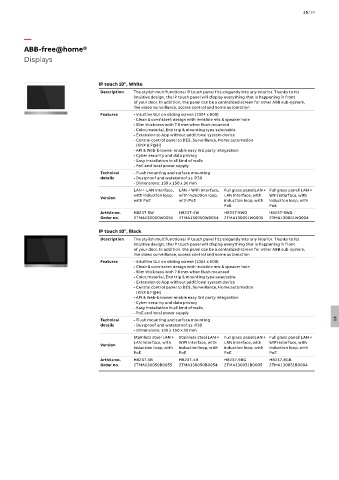

Page 2143 - Din prodcuts 2020

15/19

—
ABB-free@home®
Displays

IP touch 10'', White
Description The stylish multifunctional IP touch panel fits elegantly into any interior. Thanks to its
intuitive design, the IP touch panel will display everything that is happening in front
of your door. In addition, the panel can be a centralized screen for other ABB sub-system,
like video surveillance, access control and home automation
Features - Intuitive GUI on sliding screen (1024 x 600)
- Clean & consistent design with invisible mic & speaker hole
- Slim thickness with 7.8 mm when flush mounted
- Color,material, End trip & mounting type selectable
- Extension to App without additional system device
- Central control panel to DES, Surveillance, Home automation
(KNX & F@H)
- API & Web-browser enable easy 3rd party integration
- Cyber security and data privacy
- Easy installation in all kind of walls
- PoE and local power supply
Technical - Flush mounting and surface mounting
details - Dustproof and waterproof as IP30
- Dimensions: 139 x 150 x 36 mm
LAN + LAN interface, LAN + WiFi interface, Full glass panel LAN + Full glass panell LAN +
with induction loop, with induction loop, LAN interface, with WiFi interface, with
Version
with PoE with PoE induction loop, with induction loop, with
PoE PoE
Article no. H8237-5W H8237-4W H8237-9WG H8237-8WG
Order no. 2TMA130050W0055 2TMA130050W0054 2TMA130051W0005 2TMA130051W0004

IP touch 10'', Black
Description The stylish multifunctional IP touch panel fits elegantly into any interior. Thanks to its
intuitive design, the IP touch panel will display everything that is happening in front
of your door. In addition, the panel can be a centralized screen for other ABB sub-system,
like video surveillance, access control and home automation
Features - Intuitive GUI on sliding screen (1024 x 600)
- Clean & consistent design with invisible mic & speaker hole
- Slim thickness with 7.8 mm when flush mounted
- Color,material, End trip & mounting type selectable
- Extension to App without additional system device
- Central control panel to DES, Surveillance, Home automation
(KNX & F@H)
- API & Web-browser enable easy 3rd party integration
- Cyber security and data privacy
- Easy installation in all kind of walls
- PoE and local power supply
Technical - Flush mounting and surface mounting 15
details - Dustproof and waterproof as IP30
- Dimensions: 139 x 150 x 36 mm
Stainless steel LAN + Stainless steel LAN + Full glass panel LAN + Full glass panell LAN +
LAN interface, with WiFi interface, with LAN interface, with WiFi interface, with
Version
induction loop, with induction loop, with induction loop, with induction loop, with
PoE PoE PoE PoE
Article no. H8237-5B H8237-4B H8237-9BG H8237-8GB
Order no. 2TMA130050B0055 2TMA130050B0054 2TMA130051B0005 2TMA130051B0004
