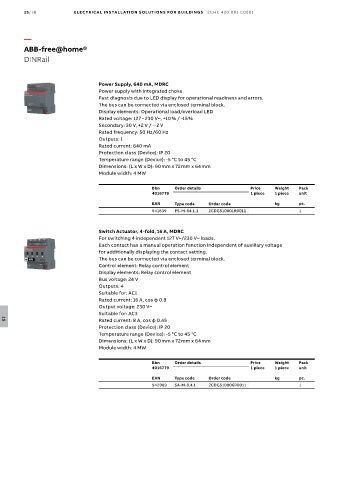

15/78 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
DINRail

Power Supply, 640 mA, MDRC
Power supply with integrated choke.
Fast diagnosis due to LED display for operational readiness and errors.
The bus can be connected via enclosed terminal block.
Display elements: Operational load/overload LED
Rated voltage: 127 - 230 V~, +10 % / -15 %
Secondary: 30 V, +2 V / --2 V
Rated frequency: 50 Hz/60 Hz
Outputs: 1
Rated current: 640 mA
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
Module width: 4 MW

Bbn Order details Price Weight Pack
4016779 1 piece 1 piece unit
EAN Type code Order code kg pc.
941839 PS-M-64.1.1 2CDG510001R0011 1

Switch Actuator, 4-fold, 16 A, MDRC
For switching 4 independent 127 V~/230 V~ loads.
Each contact has a manual operation function independent of auxiliary voltage
for additionally displaying the contact setting.
The bus can be connected via enclosed terminal block.
Control element: Relay control element
Display elements: Relay control element
Bus voltage: 24 V
Outputs: 4
Suitable for: AC1
Rated current: 16 A, cos φ 0.8
Output voltage: 230 V~
Suitable for: AC3
Rated current: 8 A, cos φ 0.45
15
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
Module width: 4 MW

Bbn Order details Price Weight Pack
4016779 1 piece 1 piece unit
EAN Type code Order code kg pc.
942089 SA-M-0.4.1 2CDG510006R0011 1
