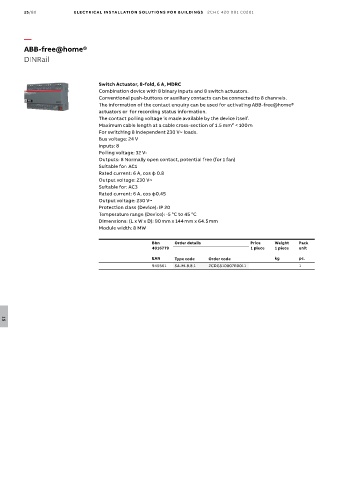

Page 2204 - Din prodcuts 2020

15/80 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
DINRail

Switch Actuator, 8-fold, 6 A, MDRC
Combination device with 8 binary inputs and 8 switch actuators.
Conventional push-buttons or auxiliary contacts can be connected to 8 channels.
The information of the contact enquiry can be used for activating ABB-free@home®
actuators or for recording status information.
The contact polling voltage is made available by the device itself.
Maximum cable length at a cable cross-section of 1.5 mm² < 100 m
For switching 8 independent 230 V~ loads.
Bus voltage: 24 V
Inputs: 8
Polling voltage: 32 V-
Outputs: 8 Normally open contact, potential free (for 1 fan)
Suitable for: AC1
Rated current: 6 A, cos φ 0.8
Output voltage: 230 V~
Suitable for: AC3
Rated current: 6 A, cos φ0.45
Output voltage: 230 V~
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 64.5 mm
Module width: 8 MW

Bbn Order details Price Weight Pack
4016779 1 piece 1 piece unit
EAN Type code Order code kg pc.
945561 SA-M-8.8.1 2CDG510007R0011 1
