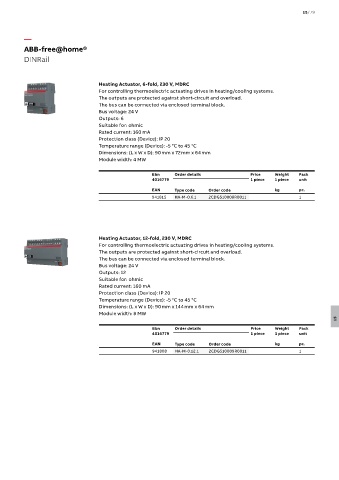

Page 2203 - Din prodcuts 2020

15/79

—
ABB-free@home®
DINRail

Heating Actuator, 6-fold, 230 V, MDRC
For controlling thermoelectric actuating drives in heating/cooling systems.
The outputs are protected against short-circuit and overload.
The bus can be connected via enclosed terminal block.
Bus voltage: 24 V
Outputs: 6
Suitable for: ohmic
Rated current: 160 mA
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
Module width: 4 MW

Bbn Order details Price Weight Pack
4016779 1 piece 1 piece unit
EAN Type code Order code kg pc.
941815 HA-M-0.6.1 2CDG510008R0011 1

Heating Actuator, 12-fold, 230 V, MDRC
For controlling thermoelectric actuating drives in heating/cooling systems.
The outputs are protected against short-circuit and overload.
The bus can be connected via enclosed terminal block.
Bus voltage: 24 V
Outputs: 12
Suitable for: ohmic
Rated current: 160 mA
Protection class (Device): IP 20
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
Module width: 8 MW
15

Bbn Order details Price Weight Pack
4016779 1 piece 1 piece unit
EAN Type code Order code kg pc.
941808 HA-M-0.12.1 2CDG510009R0011 1
