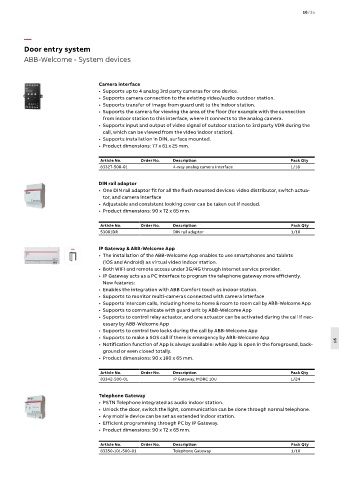

Page 2247 - Din prodcuts 2020

16/35

—
Door entry system
ABB-Welcome - System devices

Camera interface
• Supports up to 4 analog 3rd party cameras for one device.
• Supports camera connection to the existing video/audio outdoor station.
• Supports transfer of image from guard unit to the indoor station.
• Supports the camera for viewing the area of the floor (for example with the connection
from indoor station to this interface, where it connects to the analog camera.
• Supports input and output of video signal of outdoor station to 3rd party VDR during the
call, which can be viewed from the video indoor station).
• Supports installation in DIN, surface mounted.
• Product dimensions: 77 x 61 x 25 mm.

Article No. Order No. Description Pack Qty
83327-500-01 4-way analog camera interface 1/18

DIN rail adaptor
• One DIN rail adaptor fit for all the flush mounted devices: video distributor, switch actua-
tor, and camera interface
• Adjustable and consistent looking cover can be taken out if needed.
• Product dimensions: 90 x 72 x 65 mm.

Article No. Order No. Description Pack Qty
53001DR DIN rail adaptor 1/10

IP Gateway & ABB-Welcome App
• The installation of the ABB-Welcome App enables to use smartphones and tablets
(iOS and Android) as virtual video indoor station.

• Both WIFI and remote access under 3G/4G through internet service provider.
• IP Gateway acts as a PC interface to program the telephone gateway more efficiently.
New features:
• Enables the integration with ABB Comfort touch as indoor station.
• Supports to monitor multi-cameras connected with camera interface
• Supports intercom calls, including home to home & room to room call by ABB-Welcome App
• Supports to communicate with guard unit by ABB-Welcome App

• Supports to control relay actuator, and one actuator can be activated during the call if nec-
essary by ABB-Welcome App
• Supports to control two locks during the call by ABB-Welcome App
• Supports to make a SOS call if there is emergency by ABB-Welcome App 16
• Notification function of App is always available: while App is open in the foreground, back-
ground or even closed totally.
• Product dimensions: 90 x 180 x 65 mm.

Article No. Order No. Description Pack Qty
83342-500-01 IP Gateway, MDRC 10U 1/24

Telephone Gateway
• PSTN Telephone integrated as audio indoor station.
• Unlock the door, switch the light, communication can be done through normal telephone.
• Any mobile device can be set as extended indoor station.
• Efficient programming through PC by IP Gateway.
• Product dimensions: 90 x 72 x 65 mm.

Article No. Order No. Description Pack Qty
83350-101-500-01 Telephone Gateway 1/10
