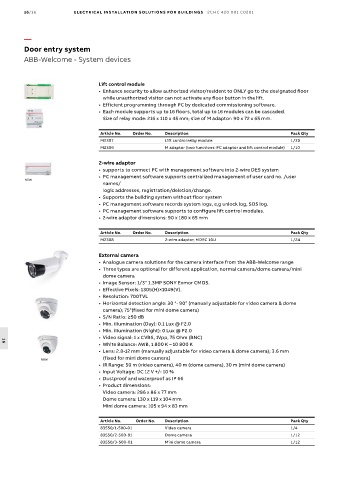

16/36 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Door entry system
ABB-Welcome - System devices

Lift control module
• Enhance security to allow authorized visitor/resident to ONLY go to the designated floor

while unauthorized visitor can not activate any floor button in the lift.
• Efficient programming through PC by dedicated commissioning software.
• Each module supports up to 16 floors, total up to 16 modules can be cascaded.
Size of relay mode: 216 x 110 x 45 mm; size of M adaptor: 90 x 72 x 65 mm.

Article No. Order No. Description Pack Qty
M2307 Lift control relay module 1/30
M2306 M adaptor (two functions: PC adaptor and lift control module) 1/10

2-wire adaptor
• supports to connect PC with management software into 2-wire DES system
• PC management software supports centralized management of user card no. /user
NEW
names/
logic addresses, registration/deletion/change.
• Supports the building system without floor system
• PC management software records system logs, e,g unlock log, SOS log.
• PC management software supports to configure lift control modules.
• 2-wire adaptor dimensions: 90 x 180 x 65 mm

Article No. Order No. Description Pack Qty
M2308 2-wire adaptor, MDRC 10U 1/24

External camera
• Analogue camera solutions for the camera interface from the ABB-Welcome range
• Three types are optional for different application, normal camera/dome camera/mini
dome camera
• Image Sensor: 1/3” 1.3MP SONY Exmor CMOS.
• Effective Pixels: 1305(H)×1049(V).
• Resolution: 700TVL
• Horizontal detection angle: 30 °- 90° (manually adjustable for video camera & dome
camera); 75°(fixed for mini dome camera)
• S/N Ratio: ≥50 dB
• Min. iIIumination (Day): 0.1 Lux @ F2.0
• Min. iIIumination (Night): 0 Lux @ F2.0
• Video signal: 1 x CVBS, 1Vpp, 75 Ohm (BNC)
• White Balance: AWB, 1 800 K – 10 800 K
16
• Lens: 2.8-12 mm (manually adjustable for video camera & dome camera); 3.6 mm

NEW (fixed for mini dome camera)
• IR Range: 50 m (video camera), 40 m (dome camera), 30 m (mini dome camera)
• Input Voltage: DC 12 V +/- 10 %
• Dustproof and waterproof as IP 66
• Product dimensions:
Video camera: 286 x 86 x 77 mm
Dome camera: 130 x 119 x 104 mm
Mini dome camera: 105 x 94 x 83 mm

Article No. Order No. Description Pack Qty
83550/1-500-01 Video camera 1/4
83550/2-500-01 Dome camera 1/12
83550/3-500-01 Mini dome camera 1/12
