18/63

—

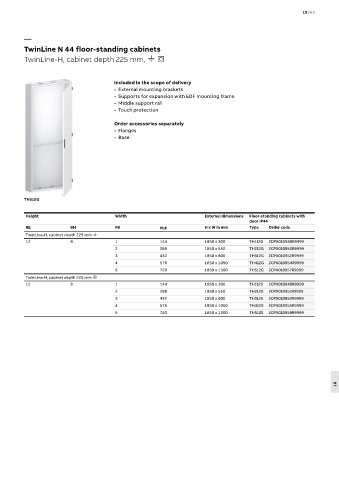

TwinLine N 44 floor-standing cabinets
TwinLine-H, cabinet depth 225 mm, . ,

Included in the scope of delivery
• External mounting brackets
• Supports for expansion with EDF mounting frame
• Middle support rail
• Touch protection
Order accessories separately
• Flanges
• Base

TH312G

Height Width External dimensions Floor-standing cabinets with
door IP44
RE BH FB PLE H x W in mm Type Order code
TwinLine-H, cabinet depth 225 mm .
12 8 1 144 1850 x 300 TH112G 2CPX010948R9999
2 288 1850 x 550 TH212G 2CPX010950R9999
3 432 1850 x 800 TH312G 2CPX010952R9999
4 576 1850 x 1050 TH412G 2CPX010954R9999
5 720 1850 x 1300 TH512G 2CPX010957R9999
TwinLine-H, cabinet depth 225 mm ,
12 8 1 144 1850 x 300 TH112S 2CPX010949R9999
2 288 1850 x 550 TH212S 2CPX010951R9999
3 432 1850 x 800 TH312S 2CPX010953R9999
4 576 1850 x 1050 TH412S 2CPX010955R9999
5 720 1850 x 1300 TH512S 2CPX010958R9999

18
