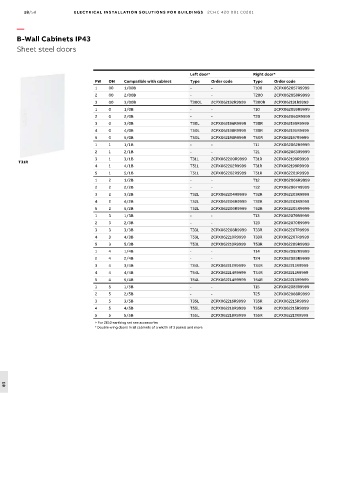

18/58 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

B-Wall Cabinets IP43
Sheet steel doors

Left door* Right door*
PW OH Compatible with cabinet Type Order code Type Order code
1 00 1/00B - - T100 2CPX062057R9999
2 00 2/00B - - T200 2CPX062058R9999
3 00 3/00B T300L 2CPX062192R9999 T300R 2CPX062191R9999
1 0 1/0B - - T10 2CPX062059R9999
2 0 2/0B - - T20 2CPX062060R9999
3 0 3/0B T30L 2CPX062196R9999 T30R 2CPX062195R9999
4 0 4/0B T50L 2CPX062198R9999 T30R 2CPX062195R9999
5 0 5/0B T50L 2CPX062198R9999 T50R 2CPX062197R9999
1 1 1/1B - - T11 2CPX062062R9999
2 1 2/1B - - T21 2CPX062063R9999
3 1 3/1B T31L 2CPX062200R9999 T31R 2CPX062199R9999
T31R
4 1 4/1B T51L 2CPX062202R9999 T31R 2CPX062199R9999
5 1 5/1B T51L 2CPX062202R9999 T51R 2CPX062201R9999
1 2 1/2B - - T12 2CPX062066R9999
2 2 2/2B - - T22 2CPX062067R9999
3 2 3/2B T32L 2CPX062204R9999 T32R 2CPX062203R9999
4 2 4/2B T52L 2CPX062206R9999 T32R 2CPX062203R9999
5 2 5/2B T52L 2CPX062206R9999 T52R 2CPX062205R9999
1 3 1/3B - - T13 2CPX062079R9999
2 3 2/3B - - T23 2CPX062070R9999
3 3 3/3B T33L 2CPX062208R9999 T33R 2CPX062207R9999
4 3 4/3B T53L 2CPX062210R9999 T33R 2CPX062207R9999
5 3 5/3B T53L 2CPX062210R9999 T53R 2CPX062209R9999
1 4 1/4B - - T14 2CPX062082R9999
2 4 2/4B - - T24 2CPX062083R9999
3 4 3/4B T34L 2CPX062212R9999 T34R 2CPX062211R9999
4 4 4/4B T54L 2CPX062214R9999 T34R 2CPX062211R9999
5 4 5/4B T54L 2CPX062214R9999 T54R 2CPX062213R9999
1 5 1/5B - - T15 2CPX062087R9999
2 5 2/5B - - T25 2CPX062088R9999
3 5 3/5B T35L 2CPX062216R9999 T35R 2CPX062215R9999
4 5 4/5B T55L 2CPX062218R9999 T35R 2CPX062215R9999
5 5 5/5B T55L 2CPX062218R9999 T55R 2CPX062217R9999
> For ZE10 earthing set see accessories
* Double-wing doors in all cabinets of a width of 3 panels and more
