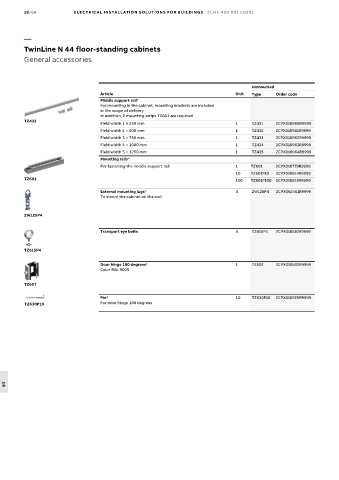

18/68 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
TwinLine N 44 floor-standing cabinets
General accessories

Unmounted
Article Unit Type Order code
Middle support rail*
For mounting in the cabinet, mounting brackets are included
in the scope of delivery
In addition, 2 mounting strips TZ601 are required
TZ433
Field width 1 = 250 mm 1 TZ431 2CPX010960R9999
Field width 2 = 500 mm 1 TZ432 2CPX010961R9999
Field width 3 = 750 mm 1 TZ433 2CPX010962R9999
Field width 4 = 1000 mm 1 TZ434 2CPX010963R9999
Field width 5 = 1250 mm 1 TZ435 2CPX010964R9999
Mounting rails*
For fastening the middle support rail 1 TZ601 2CPX010779R9999
10 TZ601P10 2CPX010814R9999
TZ601 100 TZ601P100 2CPX010815R9999

External mounting lugs* 4 ZW125P4 2CPX062461R9999
To mount the cabinet on the wall

ZW125P4

Transport eye bolts 4 TZ615P4 2CPX010510R9999

TZ615P4

Door hinge 180 degrees* 1 TZ607 2CPX010502R9999
Color RAL 9005

TZ607

Pin* 10 TZ630P10 2CPX010929R9999
TZ630P10 For door hinge 180 degrees

18
