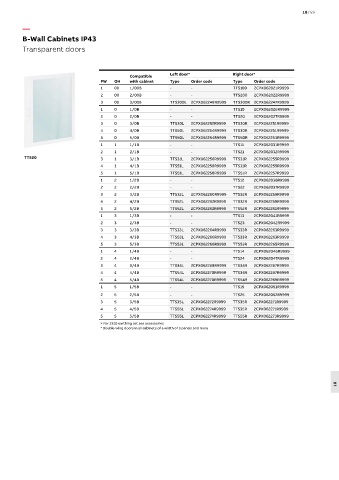

B-Wall Cabinets IP43
Transparent doors

Compatible Left door* Right door*
PW OH with cabinet Type Order code Type Order code
1 00 1/00B - - TTS100 2CPX062021R9999
2 00 2/00B - - TTS200 2CPX062022R9999
3 00 3/00B TTS300L 2CPX062248R9999 TTS300R 2CPX062247R9999
1 0 1/0B - - TTS10 2CPX062026R9999
2 0 2/0B - - TTS20 2CPX062027R9999
3 0 3/0B TTS30L 2CPX062252R9999 TTS30R 2CPX062251R9999
4 0 4/0B TTS50L 2CPX062254R9999 TTS30R 2CPX062251R9999
5 0 5/0B TTS50L 2CPX062254R9999 TTS50R 2CPX062253R9999
1 1 1/1B - - TTS11 2CPX062031R9999

2 1 2/1B - - TTS21 2CPX062032R9999
TTS20 3 1 3/1B TTS31L 2CPX062256R9999 TTS31R 2CPX062255R9999
4 1 4/1B TTS51L 2CPX062258R9999 TTS31R 2CPX062255R9999
5 1 5/1B TTS51L 2CPX062258R9999 TTS51R 2CPX062257R9999
1 2 1/2B - - TTS12 2CPX062036R9999
2 2 2/2B - - TTS22 2CPX062037R9999
3 2 3/2B TTS32L 2CPX062260R9999 TTS32R 2CPX062259R9999
4 2 4/2B TTS52L 2CPX062262R9999 TTS32R 2CPX062259R9999
5 2 5/2B TTS52L 2CPX062262R9999 TTS52R 2CPX062261R9999
1 3 1/3B - - TTS13 2CPX062041R9999
2 3 2/3B - - TTS23 2CPX062042R9999
3 3 3/3B TTS33L 2CPX062264R9999 TTS33R 2CPX062263R9999
4 3 4/3B TTS53L 2CPX062266R9999 TTS33R 2CPX062263R9999
5 3 5/3B TTS53L 2CPX062266R9999 TTS53R 2CPX062265R9999
1 4 1/4B - - TTS14 2CPX062046R9999
2 4 2/4B - - TTS24 2CPX062047R9999
3 4 3/4B TTS34L 2CPX062268R9999 TTS34R 2CPX062267R9999
4 4 4/4B TTS54L 2CPX062270R9999 TTS34R 2CPX062267R9999
5 4 5/4B TTS54L 2CPX062270R9999 TTS54R 2CPX062269R9999
1 5 1/5B - - TTS15 2CPX062051R9999
2 5 2/5B - - TTS25 2CPX062052R9999
3 5 3/5B TTS35L 2CPX062272R9999 TTS35R 2CPX062271R9999
4 5 4/5B TTS55L 2CPX062274R9999 TTS35R 2CPX062271R9999
5 5 5/5B TTS55L 2CPX062274R9999 TTS55R 2CPX062273R9999
> For ZE10 earthing set see accessories
* Double-wing doors in all cabinets of a width of 3 panels and more
