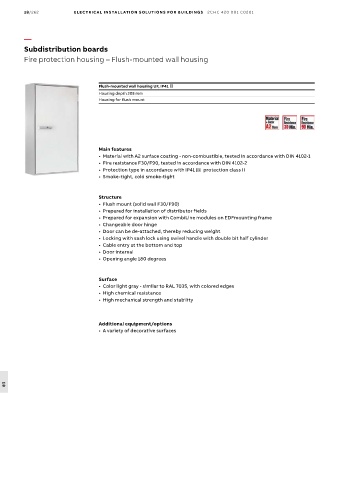

18/262 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
Fire protection housing – Flush-mounted wall housing

Flush-mounted wall housing UF, IP41 ,
Housing depth 205 mm
Housing for flush mount

Main features
• Material with A2 surface coating - non-combustible, tested in accordance with DIN 4102-1
• Fire resistance F30/F90, tested in accordance with DIN 4102-2
• Protection type in accordance with IP41 , protection class II
• Smoke-tight, cold smoke-tight

Structure
• Flush mount (solid wall F30/F90)
• Prepared for installation of distributor fields
• Prepared for expansion with CombiLine modules on EDFmounting frame
• Changeable door hinge
• Door can be de-attached, thereby reducing weight
• Locking with sash lock using swivel handle with double bit half cylinder
• Cable entry at the bottom and top
• Door internal
• Opening angle 180 degrees

Surface
• Color light gray - similar to RAL 7035, with colored edges
• High chemical resistance
• High mechanical strength and stability

Additional equipment/options
• A variety of decorative surfaces
