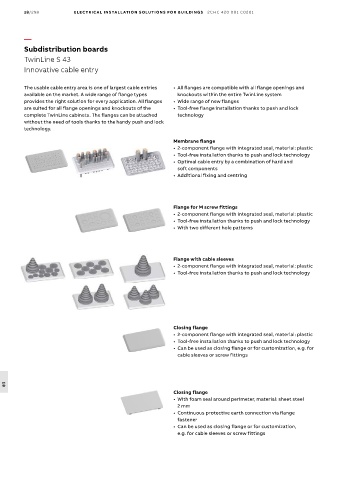

18/298 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
TwinLine S 43
Innovative cable entry

The usable cable entry area is one of largest cable entries • All flanges are compatible with all flange openings and
available on the market. A wide range of flange types knockouts within the entire TwinLine system
provides the right solution for every application. All flanges • Wide range of new flanges
are suited for all flange openings and knockouts of the • Tool-free flange installation thanks to push and lock
complete TwinLine cabinets. The flanges can be attached technology
without the need of tools thanks to the handy push and lock
technology.
Membrane flange
• 2-component flange with integrated seal, material: plastic
• Tool-free installation thanks to push and lock technology
• Optimal cable entry by a combination of hard and
soft components
• Additional fixing and centring

Flange for M screw fittings
• 2-component flange with integrated seal, material: plastic
• Tool-free installation thanks to push and lock technology
• With two different hole patterns

Flange with cable sleeves
• 2-component flange with integrated seal, material: plastic
• Tool-free installation thanks to push and lock technology

Closing flange
• 2-component flange with integrated seal, material: plastic
• Tool-free installation thanks to push and lock technology
• Can be used as closing flange or for customization, e.g. for
cable sleeves or screw fittings

18
Closing flange
• With foam seal around perimeter, material: sheet steel
2 mm
• Continuous protective earth connection via flange
fastener
• Can be used as closing flange or for customization,
e.g. for cable sleeves or screw fittings
