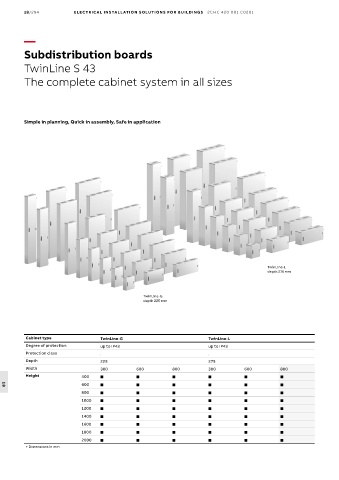

18/294 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

Subdistribution boards

TwinLine S 43
The complete cabinet system in all sizes

Simple in planning, Quick in assembly, Safe in application

TwinLine-L
depth 275 mm

TwinLine-G
depth 225 mm

Cabinet type TwinLine-G TwinLine-L
Degree of protection up to IP43 up to IP43
Protection class . .
Depth 225 275
Width 300 600 800 300 600 800
Height 400 n n n n n n
600 n n n n n n
18
800 n n n n n n
1000 n n n n n n
1200 n n n n n n
1400 n n n n n n
1600 n n n n n n
1800 n n n n n n
2000 n n n n n n
> Dimensions in mm
