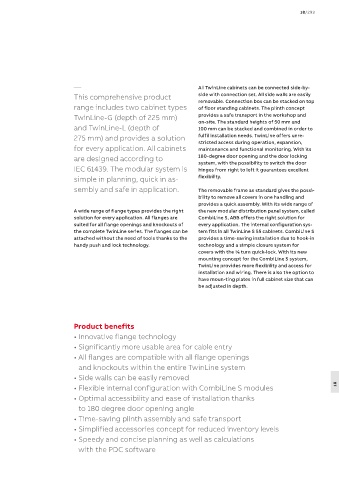

18/293

— All TwinLine cabinets can be connected side-by-
This comprehensive product side with connection set. All side walls are easily
removable. Connection box can be stacked on top
range includes two cabinet types of floor standing cabinets. The plinth concept
TwinLine-G (depth of 225 mm) provides a safe transport in the workshop and
on-site. The standard heights of 50 mm and
and TwinLine-L (depth of 100 mm can be stacked and combined in order to
275 mm) and provides a solution fulfil installation needs. TwinLine offers unre-
stricted access during operation, expansion,
for every application. All cabinets maintenance and functional monitoring. With its
are designed according to 180-degree door opening and the door locking
system, with the possibility to switch the door
IEC 61439. The modular system is hinges from right to left it guarantees excellent
simple in planning, quick in as- flexibility.

sembly and safe in application. The removable frame as standard gives the possi-
bility to remove all covers in one handling and
provides a quick assembly. With its wide range of
A wide range of flange types provides the right the new modular distribution panel system, called
solution for every application. All flanges are CombiLine S, ABB offers the right solution for
suited for all flange openings and knockouts of every application. The internal configuration sys-
the complete TwinLine series. The flanges can be tem fits in all TwinLine S 55 cabinets. CombiLine S
attached without the need of tools thanks to the provides a time-saving installation due to hook-in
handy push and lock technology. technology and a simple closure system for
covers with the ¼ turn quick-lock. With its new
mounting concept for the CombiLine S system,
TwinLine provides more flexibility and access for
installation and wiring. There is also the option to
have moun-ting plates in full cabinet size that can
be adjusted in depth.

Product benefits

• Innovative flange technology
• Significantly more usable area for cable entry
• All flanges are compatible with all flange openings

and knockouts within the entire TwinLine system
• Side walls can be easily removed
• Flexible internal configuration with CombiLine S modules 18
• Optimal accessibility and ease of installation thanks

to 180 degree door opening angle
• Time-saving plinth assembly and safe transport
• Simplified accessories concept for reduced inventory levels
• Speedy and concise planning as well as calculations

with the PDC software
