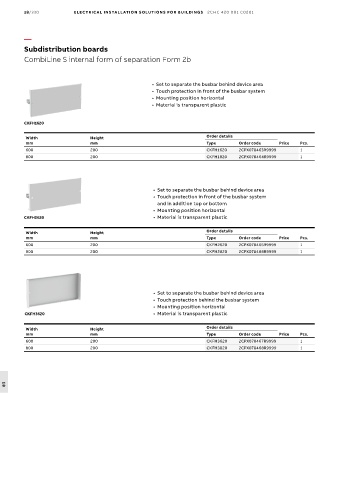

18/330 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S internal form of separation Form 2b

• Set to separate the busbar behind device area
• Touch protection in front of the busbar system
• Mounting position horizontal
• Material is transparent plastic

CKFH1620

Width Height Order details
mm mm Type Order code Price Pcs.
600 200 CKFH1620 2CPX078463R9999 1
800 200 CKFH1820 2CPX078464R9999 1

• Set to separate the busbar behind device area
• Touch protection in front of the busbar system
and in addition top or bottom
• Mounting position horizontal
CKFH2620 • Material is transparent plastic

Width Height Order details
mm mm Type Order code Price Pcs.
600 200 CKFH2620 2CPX078465R9999 1
800 200 CKFH2820 2CPX078466R9999 1

• Set to separate the busbar behind device area
• Touch protection behind the busbar system
• Mounting position horizontal
CKFH3620 • Material is transparent plastic

Width Height Order details
mm mm Type Order code Price Pcs.
600 200 CKFH3620 2CPX078467R9999 1
800 200 CKFH3820 2CPX078468R9999 1

18
