18/327

—

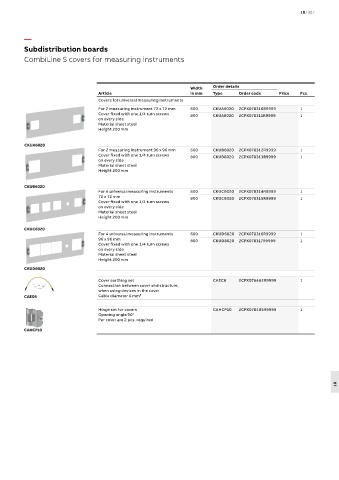

Subdistribution boards
CombiLine S covers for measuring instruments

Width Order details
Article in mm Type Order code Price Pcs.
Covers for universal measuring instruments
For 2 measuring instrument 72 x 72 mm 600 CKUA6020 2CPX078310R9999 1
Cover fixed with one 1/4 turn screws 800 CKUA8020 2CPX078311R9999 1
on every side
Material sheet steel
Height 200 mm

CKUA6020
For 2 measuring instrument 96 x 96 mm 600 CKUB6020 2CPX078312R9999 1
Cover fixed with one 1/4 turn screws 800 CKUB8020 2CPX078313R9999 1
on every side
Material sheet steel
Height 200 mm

CKUB6020
For 4 universal measuring instruments 600 CKUC6020 2CPX078314R9999 1
72 x 72 mm 800 CKUC8020 2CPX078315R9999 1
Cover fixed with one 1/4 turn screws
on every side
Material sheet steel
Height 200 mm

CKUC6020
For 4 universal measuring instruments 600 CKUD6020 2CPX078316R9999 1
96 x 96 mm 800 CKUD8020 2CPX078317R9999 1
Cover fixed with one 1/4 turn screws
on every side
Material sheet steel
Height 200 mm
CKUD6020

Cover earthing set CAEC6 2CPX078462R9999 1
Connection between cover and structure,
when using devices in the cover
CAE06 Cable diameter 6 mm²

Hinge set for covers CAHCP10 2CPX078485R9999 1
Opening angle 90°
Per cover are 2 pcs. required
CAHCP10

18
