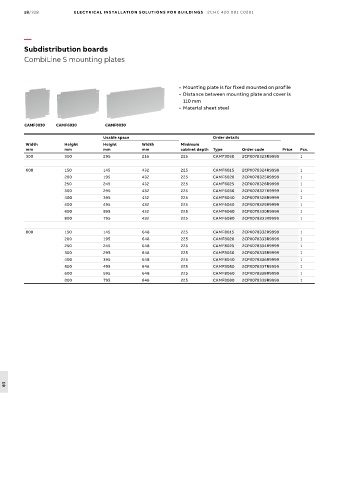

18/328 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S mounting plates

• Mounting plate is for fixed mounted on profile
• Distance between mounting plate and cover is
110 mm
• Material sheet steel

CAMF3030 CAMF6030 CAMF8030

Usable space Order details
Width Height Height Width Minimum
mm mm mm mm cabinet depth Type Order code Price Pcs.
300 300 295 216 225 CAMF3030 2CPX078323R9999 1

600 150 145 432 225 CAMF6015 2CPX078324R9999 1
200 195 432 225 CAMF6020 2CPX078325R9999 1
250 245 432 225 CAMF6025 2CPX078326R9999 1
300 295 432 225 CAMF6030 2CPX078327R9999 1
400 395 432 225 CAMF6040 2CPX078328R9999 1
500 495 432 225 CAMF6050 2CPX078329R9999 1
600 595 432 225 CAMF6060 2CPX078330R9999 1
800 795 432 225 CAMF6080 2CPX078331R9999 1

800 150 145 648 225 CAMF8015 2CPX078332R9999 1
200 195 648 225 CAMF8020 2CPX078333R9999 1
250 245 648 225 CAMF8025 2CPX078334R9999 1
300 295 648 225 CAMF8030 2CPX078335R9999 1
400 395 648 225 CAMF8040 2CPX078336R9999 1
500 495 648 225 CAMF8050 2CPX078337R9999 1
600 595 648 225 CAMF8060 2CPX078338R9999 1
800 795 648 225 CAMF8080 2CPX078339R9999 1

18
