18/335

—

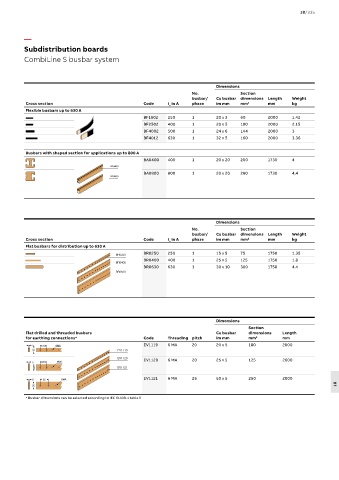

Subdistribution boards
CombiLine S busbar system

Dimensions
No. Section
busbar/ Cu busbar dimensions Length Weight
Cross section Code I in A phase im mm mm 2 mm kg
n
Flexible busbars up to 630 A
BF1602 250 1 20 x 3 60 2000 1.42
BF2502 400 1 20 x 5 100 2000 2.15
BF4002 500 1 24 x 6 144 2000 3
BF4012 630 1 32 x 5 160 2000 3.36

Busbars with shaped section for applications up to 800 A
EV1119
BA0400 400 1 20 x 20 200 1730 4
EV1120
BA0400
EV1121
BA0800 800 1 20 x 20 280 1730 4,4
BA0800

PB0802

Dimensions
PB0803
No. Section
busbar/ Cu busbar dimensions Length Weight
Cross section Code I in A phase im mm mm 2 mm kg
n
Flat busbars for distribution up to 630 A
BR0250 BR0250 250 1 15 x 5 75 1750 1.35
BR0400 400 1 25 x 5 125 1750 1.8
BR0400
BR0630 630 1 30 x 10 300 1750 4.4
BR0630

AD1068 AD1077

20
AD1056
27
AD1064
BP0630
BP0632 Dimensions
Section
Flat drilled and threaded busbars Cu busbar dimensions Length
for earthing connections* Code Threading pitch im mm mm 2 mm
BP0634
5 20 6MA EV1119 6 MA 20 20 x 5 100 2000
5 20 20 5 20 6MA EV1119
20 6MA
5 20 20 6MA EV1120 EV1120 6 MA 20 25 x 5 125 2000
5 20 6MA
5 25 25 20 6MA EV1121
5 25 25 6MA
5 25 6MA Fig.1
5 50 50 25 6MA EV1121 6 MA 25 50 x 5 250 2000
18
A TL1000
50
A TL1100
A
B
* Busbar dimensions can be selected according to IEC 61439-1 table 5
B
B

BP0632

Fig.2

TL3000
