19/52 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

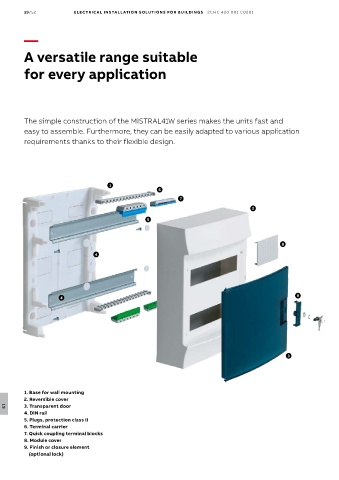

A versatile range suitable

for every application

The simple construction of the MISTRAL41W series makes the units fast and
easy to assemble. Furthermore, they can be easily adapted to various application
requirements thanks to their flexible design.

1
6
7
2

5

8
4

9
4

3

1. Base for wall mounting
2. Reversible cover
3. Transparent door
19
4. DIN rail
5. Plugs, protection class II
6. Terminal carrier
7. Quick coupling terminal blocks
8. Module cover
9. Finish or closure element
(optional lock)
