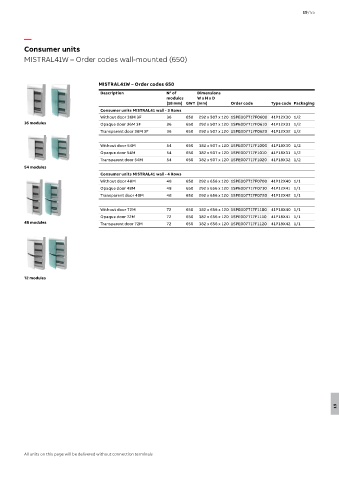

Consumer units
MISTRAL41W – Order codes wall-mounted (650)

MISTRAL41W – Order codes 650
Description N° of Dimensions
modules W x H x D
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL41 wall - 3 Rows
Without door 36M 3F 36 650 292 x 507 x 120 1SPE007717F0600 41P12X30 1/2
36 modules Opaque door 36M 3F 36 650 292 x 507 x 120 1SPE007717F0610 41P12X31 1/2
Transparent door 36M 3F 36 650 292 x 507 x 120 1SPE007717F0620 41P12X32 1/2

Without door 54M 54 650 382 x 507 x 120 1SPE007717F1000 41P18X30 1/2
Opaque door 54M 54 650 382 x 507 x 120 1SPE007717F1010 41P18X31 1/2
Transparent door 54M 54 650 382 x 507 x 120 1SPE007717F1020 41P18X32 1/2
54 modules
Consumer units MISTRAL41 wall - 4 Rows
Without door 48M 48 650 292 x 656 x 120 1SPE007717F0700 41P12X40 1/1
Opaque door 48M 48 650 292 x 656 x 120 1SPE007717F0710 41P12X41 1/1
Transparent door 48M 48 650 292 x 656 x 120 1SPE007717F0720 41P12X42 1/1

Without door 72M 72 650 382 x 656 x 120 1SPE007717F1100 41P18X40 1/1
Opaque door 72M 72 650 382 x 656 x 120 1SPE007717F1110 41P18X41 1/1
48 modules Transparent door 72M 72 650 382 x 656 x 120 1SPE007717F1120 41P18X42 1/1

72 modules

19

All units on this page will be delivered without connection terminals
