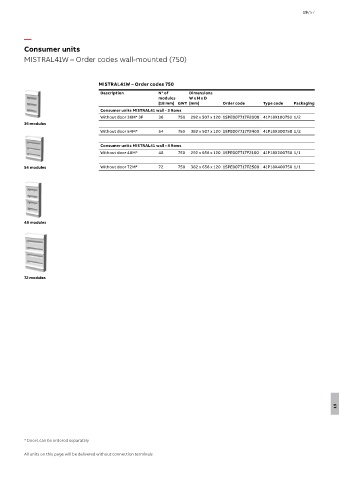

Consumer units
MISTRAL41W – Order codes wall-mounted (750)

MISTRAL41W – Order codes 750
Description N° of Dimensions
modules W x H x D
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL41 wall - 3 Rows
Without door 36M* 3F 36 750 292 x 507 x 120 1SPE007717F2000 41P18X100750 1/2
36 modules
Without door 54M* 54 750 382 x 507 x 120 1SPE007717F2400 41P18X300750 1/2

Consumer units MISTRAL41 wall - 4 Rows
Without door 48M* 48 750 292 x 656 x 120 1SPE007717F2100 41P18X200750 1/1

54 modules Without door 72M* 72 750 382 x 656 x 120 1SPE007717F2500 41P18X400750 1/1

48 modules

72 modules

19

* Doors can be ordered separately

All units on this page will be delivered without connection terminals
