19/80 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

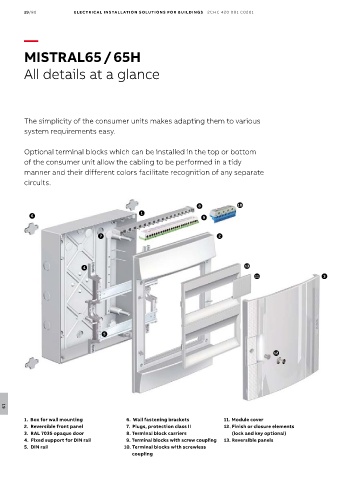

MISTRAL65 / 65H

All details at a glance

The simplicity of the consumer units makes adapting them to various
system requirements easy.

Optional terminal blocks which can be installed in the top or bottom

of the consumer unit allow the cabling to be performed in a tidy
manner and their different colors facilitate recognition of any separate
circuits.

8 10
1
6 9

7 2

4 13
11 3

5

12

19
1. Box for wall mounting 6. Wall fastening brackets 11. Module cover
2. Reversible front panel 7. Plugs, protection class II 12. Finish or closure elements
3. RAL 7035 opaque door 8. Terminal block carriers (lock and key optional)
4. Fixed support for DIN rail 9. Terminal blocks with screw coupling 13. Reversible panels
5. DIN rail 10. Terminal blocks with screwless
coupling
