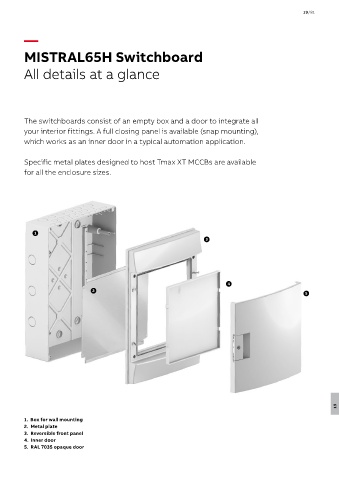

MISTRAL65H Switchboard

All details at a glance

The switchboards consist of an empty box and a door to integrate all
your interior fittings. A full closing panel is available (snap mounting),
which works as an inner door in a typical automation application.

Specific metal plates designed to host Tmax XT MCCBs are available
for all the enclosure sizes.

1
3

4
2
5

19

1. Box for wall mounting
2. Metal plate
3. Reversible front panel
4. Inner door
5. RAL 7035 opaque door
