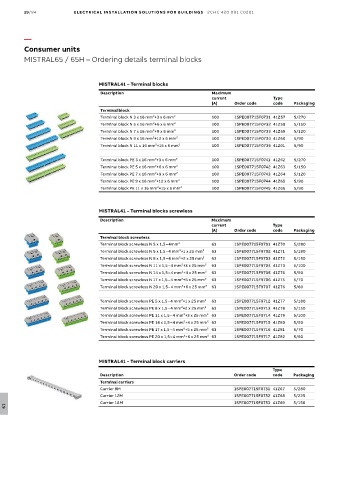

19/94 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
MISTRAL65 / 65H – Ordering details terminal blocks

MISTRAL41 – Terminal blocks
Description Maximum
current Type
[A] Order code code Packaging
Terminal block
Terminal block N 3 x 16 mm²+3 x 6 mm² 100 1SPE007715F0731 41Z57 5/270
Terminal block N 5 x 16 mm²+6 x 6 mm² 100 1SPE007715F0732 41Z58 5/150
Terminal block N 7 x 16 mm²+9 x 6 mm² 100 1SPE007715F0733 41Z59 5/120
Terminal block N 9 x 16 mm²+12 x 6 mm² 100 1SPE007715F0734 41Z60 5/90
Terminal block N 11 x 16 mm²+15 x 6 mm² 100 1SPE007715F0735 41Z61 5/90

Terminal block PE 3 x 16 mm²+3 x 6 mm² 100 1SPE007715F0741 41Z62 5/270
Terminal block PE 5 x 16 mm²+6 x 6 mm² 100 1SPE007715F0742 41Z63 5/150
Terminal block PE 7 x 16 mm²+9 x 6 mm² 100 1SPE007715F0743 41Z64 5/120
Terminal block PE 9 x 16 mm²+12 x 6 mm² 100 1SPE007715F0744 41Z65 5/90
Terminal block PE 11 x 16 mm²+15 x 6 mm² 100 1SPE007715F0745 41Z66 5/90

MISTRAL41 – Terminal blocks screwless
Description Maximum
current Type
[A] Order code code Packaging
Terminal block screwless
Terminal block screwless N 5 x 1,5 – 4mm² 63 1SPE007715F9701 41Z70 5/280
Terminal block screwless N 5 x 1,5 – 4 mm²+1 x 25 mm² 63 1SPE007715F9702 41Z71 5/180
Terminal block screwless N 8 x 1,5 – 4 mm²+2 x 25 mm² 63 1SPE007715F9703 41Z72 5/150
Terminal block screwless N 11 x 1,5 – 4 mm²+3 x 25 mm² 63 1SPE007715F9704 41Z73 5/100
Terminal block screwless N 14 x 1,5 – 4 mm²+4 x 25 mm² 63 1SPE007715F9705 41Z74 5/90
Terminal block screwless N 17 x 1,5 – 4 mm²+5 x 25 mm² 63 1SPE007715F9706 41Z75 5/70
Terminal block screwless N 20 x 1,5 – 4 mm²+6 x 25 mm² 63 1SPE007715F9707 41Z76 5/60

Terminal block screwless PE 5 x 1,5 – 4 mm²+1 x 25 mm² 63 1SPE007715F9712 41Z77 5/180
Terminal block screwless PE 8 x 1,5 – 4 mm²+2 x 25 mm² 63 1SPE007715F9713 41Z78 5/150
Terminal block screwless PE 11 x 1,5 – 4 mm²+3 x 25 mm² 63 1SPE007715F9714 41Z79 5/100
Terminal block screwless PE 14 x 1,5 – 4 mm²+4 x 25 mm² 63 1SPE007715F9715 41Z80 5/90
Terminal block screwless PE 17 x 1,5 – 4 mm²+5 x 25 mm² 63 1SPE007715F9716 41Z81 5/70
Terminal block screwless PE 20 x 1,5 – 4 mm²+6 x 25 mm² 63 1SPE007715F9717 41Z82 5/60

MISTRAL41 – Terminal block carriers
Type
Description Order code code Packaging
Terminal carriers
Carrier 8M 1SPE007715F0751 41Z67 5/280
Carrier 12M 1SPE007715F0752 41Z68 5/225
Carrier 18M 1SPE007715F0753 41Z69 5/150
19
