Consumer units

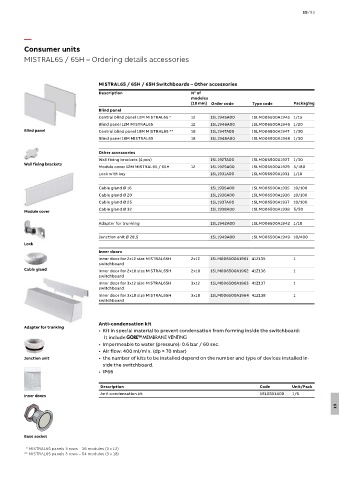

MISTRAL65 / 65H – Ordering details accessories

MISTRAL65 / 65H / 65H Switchboards – Other accessories
Description N° of
modules
[18 mm] Order code Type code Packaging
Blind panel
Central blind panel 12M MISTRAL65 * 12 1SL1945A00 1SLM006500A1945 1/15
Blind panel 12M MISTRAL65 12 1SL1946A00 1SLM006500A1946 1/20
Blind panel Central blind panel 18M MISTRAL65 ** 18 1SL1947A00 1SLM006500A1947 1/30
Blind panel 18M MISTRAL65 18 1SL1948A00 1SLM006500A1948 1/30

Other accessories
Wall fixing brackets (4 pcs) 1SL1927A00 1SLM006500A1927 1/30
Wall fixing brackets
Module cover 12M MISTRAL65 / 65H 12 1SL1929A00 1SLM006500A1929 5/180
Lock with key 1SL1931A00 1SLM006500A1931 1/10

Cable gland Ø 16 1SL1935A00 1SLM006500A1935 10/100
Cable gland Ø 20 1SL1936A00 1SLM006500A1936 10/100
Cable gland Ø 25 1SL1937A00 1SLM006500A1937 10/100
Module cover Cable gland Ø 32 1SL1938A00 1SLM006500A1938 5/50
Adapter for trunking 1SL1942A00 1SLM006500A1942 1/10

Junction unit Ø 28,5 1SL1949A00 1SLM006500A1949 10/400
Lock
Inner doors
Inner door for 2x12 size MISTRAL65H 2x12 1SLM006500A1961 41Z135 1
switchboard
Cable gland Inner door for 2x18 size MISTRAL65H 2x18 1SLM006500A1962 41Z136 1
switchboard
Inner door for 3x12 size MISTRAL65H 3x12 1SLM006500A1963 41Z137 1
switchboard
Inner door for 3x18 size MISTRAL65H 3x18 1SLM006500A1964 41Z138 1
switchboard

Anti-condensation kit
Adapter for trunking
• Kit in special material to prevent condensation from forming inside the switchboard:
it include
• Impermeable to water (pressure): 0.6 bar / 60 sec.
• Air flow: 400 ml/min. (dp = 70 mbar)
Junction unit • the number of kits to be installed depend on the number and type of devices installed in-
side the switchboard.
• IP66

Description Code Unit/Pack
Anti-condensation kit 1SL0351A00 1/6
Inner doors
19

Base socket

* MISTRAL65 panels 3 rows – 36 modules (3 x 12)
** MISTRAL65 panels 3 rows – 54 modules (3 x 18)
