20/33

ź ź Ÿ ŵ Ÿ ŵ

—

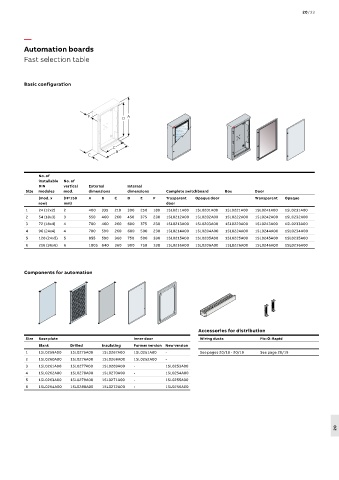

Automation boards
Fast selection table Ź Ŷ Ź Ŷ
ŷ ŷ

Basic configuration

ź ź ź ź ź ŵ ŵ ŵ ŵ ŵ
Ÿ Ÿ Ÿ ŸŸ

ź ź ź ź ź Ÿ Ÿ Ÿ Ÿ Ÿ
ŵ ŵ ŵ ŵ ŵ
Ź Ź Ź Ź Ź
Ŷ Ŷ Ŷ Ŷ Ŷ
ŷ ŷ ŷ ŷ ŷ

Ź Ź Ź Ź Ź
Ŷ Ŷ Ŷ Ŷ Ŷ
No. of ŷ ŷ ŷ ŷ ŷ
installable No. of
DIN vertical External Internal
Size modules mod. dimensions dimensions Complete switchboard Box Door
(mod. x (H=150 A B C D E F Trasparent Opaque door Transparent Opaque
row) mm) door
1 24 (12x2) 2 400 335 210 300 250 180 1SL0211A00 1SL0201A00 1SL0221A00 1SL0241A00 1SL0231A00
2 54 (18x3) 3 550 460 260 450 375 230 1SL0212A00 1SL0202A00 1SL0222A00 1SL0242A00 1SL0232A00
3 72 (18x4) 4 700 460 260 600 375 230 1SL0213A00 1SL0203A00 1SL0223A00 1SL0243A00 1SL0233A00
4 96 (24x4) 4 700 590 260 600 500 230 1SL0214A00 1SL0204A00 1SL0224A00 1SL0244A00 1SL0234A00
5 120 (24x5) 5 855 590 360 750 500 330 1SL0215A00 1SL0205A00 1SL0225A00 1SL0245A00 1SL0235A00
6 216 (36x6) 6 1005 840 360 900 750 330 1SL0216A00 1SL0206A00 1SL0226A00 1SL0246A00 1SL0236A00

Components for automation

Accessories for distribution
SIze Base plate Inner door Wiring ducts Fix-O-Rapid
Blank Drilled Insulating Former version New version
1 1SL0259A00 1SL0275A00 1SL0267A00 1SL0251A00 - See pages 20/18 - 20/19 See page 20/19
2 1SL0260A00 1SL0276A00 1SL0268A00 1SL0252A00 -
3 1SL0261A00 1SL0277A00 1SL0269A00 - 1SL0253A00
4 1SL0262A00 1SL0278A00 1SL0270A00 - 1SL0254A00
5 1SL0263A00 1SL0279A00 1SL0271A00 - 1SL0255A00
6 1SL0264A00 1SL0280A00 1SL0272A00 - 1SL0256A00
