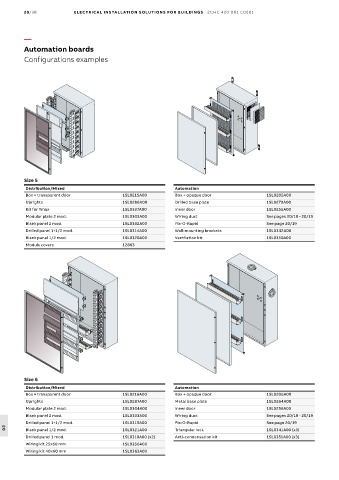

Automation boards
Configurations examples

Size 5
Distribution/Mixed Automation
Box + transparent door 1SL0215A00 Box + opaque door 1SL0205A00
Uprights 1SL0286A00 Drilled base plate 1SL0279A00
Kit for Tmax 1SL0337A00 Inner door 1SL0255A00
Modular plate 2 mod. 1SL0303A00 Wiring duct See pages 20/18 - 20/19
Blank panel 2 mod. 1SL0332A00 Fix-O-Rapid See page 20/19
Drilled panel 1+1/2 mod. 1SL0314A00 Wall-mounting brackets 1SL0342A00
Blank panel 1/2 mod. 1SL0320A00 Ventilation kit 1SL0350A00
Module covers 12863

Size 6
Distribution/Mixed Automation
Box + transparent door 1SL0216A00 Box + opaque door 1SL0206A00
Uprights 1SL0287A00 Metal base plate 1SL0264A00
Modular plate 2 mod. 1SL0304A00 Inner door 1SL0256A00
Blank panel 2 mod. 1SL0333A00 Wiring duct See pages 20/18 - 20/19
Drilled panel 1+1/2 mod. 1SL0315A00 Fix-O-Rapid See page 20/19
Blank panel 1/2 mod. 1SL0321A00 Triangular lock 1SL0341A00 (x3)
20
Drilled panel 1 mod. 1SL0310A00 (x2) Anti-condensation kit 1SL0351A00 (x3)
Wiring kit 25x60 mm 1SL0356A00
Wiring kit 40x60 mm 1SL0363A00
