20/28 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

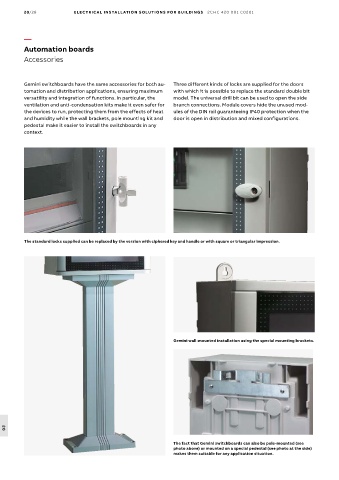

Automation boards
Accessories

Gemini switchboards have the same accessories for both au- Three different kinds of locks are supplied for the doors
tomation and distribution applications, ensuring maximum with which it is possible to replace the standard double bit
versatility and integration of functions. In particular, the model. The universal drill bit can be used to open the side
ventilation and anti-condensation kits make it even safer for branch connections. Module covers hide the unused mod-
the devices to run, protecting them from the effects of heat ules of the DIN rail guaranteeing IP40 protection when the
and humidity while the wall brackets, pole mounting kit and door is open in distribution and mixed configurations.
pedestal make it easier to install the switchboards in any
context.

The standard locks supplied can be replaced by the version with ciphered key and handle or with square or triangular impression.

Gemini wall-mounted installation using the special mounting brackets.

20

The fact that Gemini switchboards can also be pole-mounted (see
photo above) or mounted on a special pedestal (see photo at the side)
makes them suitable for any application situation.
