Auxiliary elements

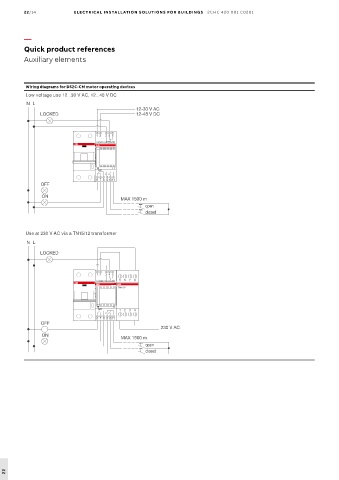

Wiring diagrams for DS2C-CM motor operating devices
Low voltage use 12...30 V AC, 12...48 V DC
NL
12-30 V AC
LOCKED 12-48 V DC

1 2 3 4 5
LOCKED / BLOCCATO

AUX
6 78 91011
OFF
ON
MAX 1500 m
open
closed

Use at 230 V AC via a TN15/12 transformer
NL

LOCKED

1 2 3 4 5
5 6 7 8
LOCKED / BLOCCATO
TM15/2

AUX 1 2 3 4
6 78 91011
OFF
230 V AC .
ON
MAX 1500 m
open
closed
