Quick product references
Auxiliary elements

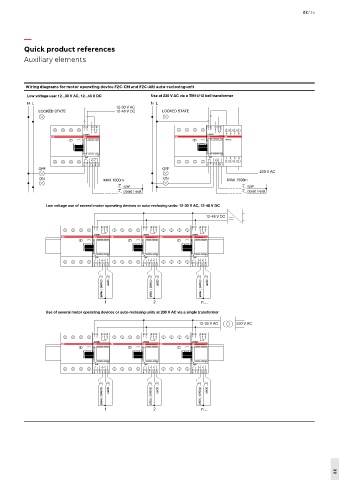

Wiring diagrams for motor operating device F2C-CM and F2C-ARI auto-reclosing unit
Low voltage use: 12...30 V AC, 12...48 V DC Use at 230 V AC via a TM15/12 bell transformer
N L N L
12-30 V AC
LOCKED STATE 12-48 V DC LOCKED STATE
1 2 3 4 5 1 2 3 4 5
LOCKED LOCKED 5 6 7 8
TM15/2
AUX AUX 1 2 3 4
6 7 8 9 1011 6 7 8 9 1011
OFF OFF
230 V AC
ON MAX 1500m ON MAX 1500m
open open
closed / reset closed / reset
Low voltage use of several motor operating devices or auto-reclosing units: 12-30 V AC, 12-48 V DC
12-48 V DC
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
LOCKED LOCKED LOCKED
AUX AUX AUX
6 7 8 9 1011 open 6 7 8 9 1011 open 6 7 8 9 1011 open
closed / reset
1 closed / reset 2 closed / reset n ...
Use of several motor operating devices or auto-reclosing units at 230 V AC via a single transformer
12-30 V AC 230 V AC
1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
LOCKED LOCKED LOCKED
AUX AUX AUX
6 7 8 9 1011 open 6 7 8 9 1011 open 6 7 8 9 1011 open
closed / reset
1 closed / reset 2 closed / reset n ...
