22/18 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—

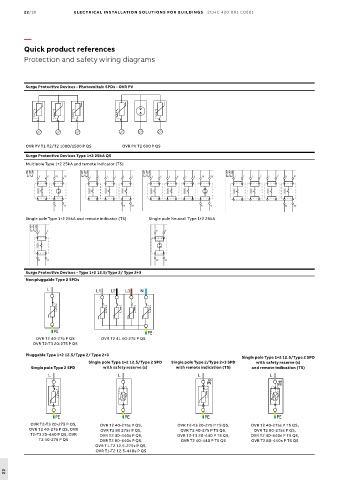

Quick product references
Protection and safety wiring diagrams
Surge Protective Devices - Photovoltaic SPDs - OVR PV
OVR PV T1-T2/T2 1000/1500 P QS OVR PV T2 600 P QS
Surge Protective Devices Type 1+2 25kA QS
Multipole Type 1+2 25kA and remote indicator (TS)
Single pole Type 1+2 25kA and remote indicator (TS) Single pole Neutral Type 1+2 25kA
Surge Protective Devices - Type 1+2 12.5/Type 2/ Type 2+3
Non pluggable Type 2 SPDs
L1 L2 L3 N
OVR T2 40-275 P QS OVR T2 4L 40-275 P QS
OVR T2-T3 20-275 P QS
Pluggable Type 1+2 12.5/Type 2/ Type 2+3
Single pole Type 1+2 12.5/Type 2 SPD
Single pole Type 1+2 12.5/Type 2 SPD Single pole Type 2/Type 2+3 SPD with safety reserve (s)
Single pole Type 2 SPD with safety reserve (s) with remote indication (TS) and remote indication (TS)
OVR T2-T3 20-275 P QS, OVR T2 40-275s P QS, OVR T2-T3 20-275 P TS QS, OVR T2 40-275s P TS QS,
OVR T2 40-275 P QS, OVR OVR T2 80 275s P QS, OVR T2 40-275 P TS QS, OVR T2 80-275s P QS,
T2-T3 20-440 P QS, OVR OVR T2 40-440s P QS, OVR T2-T3 20-440 P TS QS, OVR T2 40-440s P TS QS,
T2 40-275 P QS OVR T2 80-440s P QS, OVR T2 40-440 P TS QS OVR T2 80-440s P TS QS
OVR T1-T2 12.5-275s P QS,
OVR T1-T2 12.5-440s P QS
