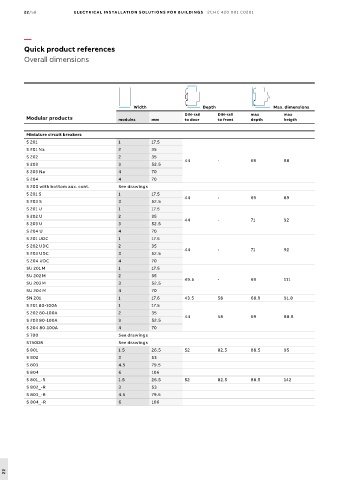

Quick product references
Overall dimensions

Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth

Miniature circuit breakers
S 201 1 17.5
S 201 Na 2 35
S 202 2 35
44 - 69 88
S 203 3 52.5
S 203 Na 4 70
S 204 4 70
S 200 with bottom aux. cont. See drawings
S 201 S 1 17.5
44 - 69 89
S 203 S 3 52.5
S 201 U 1 17.5
S 202 U 2 35
44 - 71 92
S 203 U 3 52.5
S 204 U 4 70
S 201 UDC 1 17.5
S 202 UDC 2 35
44 - 71 92
S 203 UDC 3 52.5
S 204 UDC 4 70
SU 201 M 1 17.5
SU 202 M 2 35
49.5 - 69 111
SU 203 M 3 52.5
SU 204 M 4 70
SN 201 1 17.6 43.5 58 68.9 91.8
S 201 80-100A 1 17.5
S 202 80-100A 2 35
44 58 69 88.8
S 203 80-100A 3 52.5
S 204 80-100A 4 70
S 700 See drawings
S750DR See drawings
S 801 1.5 26.5 52 82.5 88.5 95
S 802 3 53
S 803 4.5 79.5
S 804 6 106
S 801_-R 1.5 26.5 52 82.5 88.5 142
S 802_-R 3 53
S 803_-R 4.5 79.5
S 804_-R 6 106
