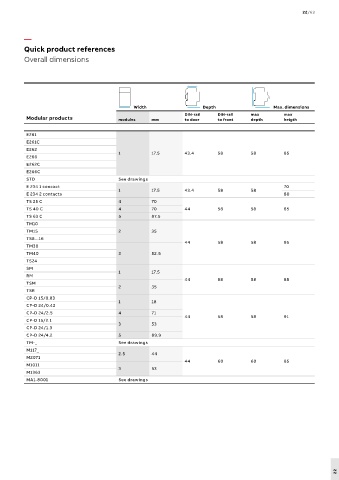

Quick product references
Overall dimensions
Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth
E261
E261C
E262
1 17.5 43.4 58 58 85
E266
E262C
E266C
STD See drawings
E 234 1 concact 70
1 17.5 43.4 58 58
E 234 2 contacts 80
TS 25 C 4 70
TS 40 C 4 70 44 58 58 85
TS 63 C 5 87.5
TM10
TM15 2 35
TS8...16
44 58 58 85
TM30
TM40 3 52.5
TS24
SM
1 17.5
RM
44 58 58 85
TSM
2 35
TSR
CP-D 15/0.83
1 18
CP-D 24/0.42
CP-D 24/2.5 4 71
44 58 58 91
CP-D 15/2.1
3 53
CP-D 24/1.3
CP-D 24/4.2 5 89.9
TM-_ See drawings
M117_
2.5 44
M2071
44 60 60 85
M1011
3 53
M1363
MA1-8001 See drawings
