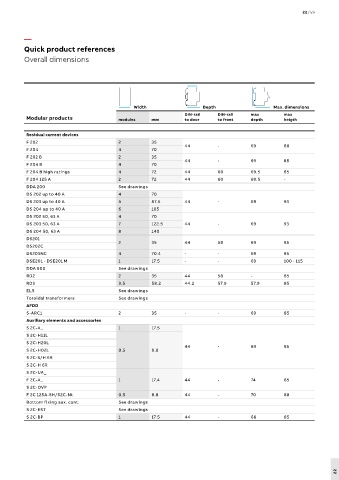

Quick product references
Overall dimensions

Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth

Residual current devices
F 202 2 35
44 - 69 88
F 204 4 70
F 202 B 2 35
44 - 69 85
F 204 B 4 70
F 204 B high ratings 4 72 44 60 69.5 85
F 204 125 A 2 72 44 60 69.5 -
DDA 200 See drawings
DS 202 up to 40 A 4 70
DS 203 up to 40 A 5 87.5 44 - 69 93
DS 204 up to 40 A 6 105
DS 202 50, 63 A 4 70
DS 203 50, 63 A 7 122.5 44 - 69 93
DS 204 50, 63 A 8 140
DS201
2 35 44 58 69 85
DS202C
DS203NC 4 70.4 - - 69 85
DSE201 - DSE201 M 1 17.5 - - 69 100 - 115
DDA 800 See drawings
RD2 2 35 44 58 - 85
RD3 3.5 58.2 44.2 57.9 57.9 85
ELR See drawings
Toroidal transformers See drawings
AFDD
S-ARC1 2 35 - - 69 85
Auxiliary elements and accessories
S 2C-A_ 1 17.5
S 2C-H11L
S 2C-H20L
44 - 69 85
S 2C-H02L 0.5 8.8
S 2C-S/H 6R
S 2C-H 6R
S 2C-UA_
F 2C-A_ 1 17.4 44 - 74 85
S 2C-OVP
F 2C 125A-SH/S2C-Nt 0.5 8.8 44 - 70 88
Bottom fixing aux. cont. See drawings
S 2C-EST See drawings
S 2C-BP 1 17.5 44 - 68 85
