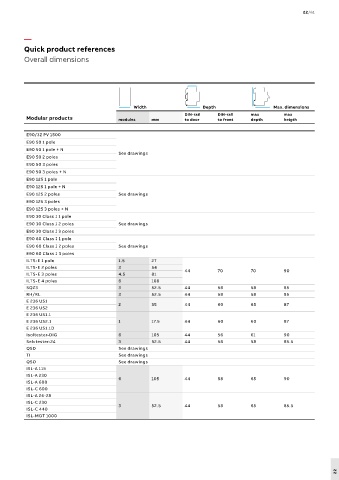

Quick product references
Overall dimensions
Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth
E90/32 PV 1500
E90 50 1 pole
E90 50 1 pole + N
See drawings
E90 50 2 poles
E90 50 3 poles
E90 50 3 poles + N
E90 125 1 pole
E90 125 1 pole + N
E90 125 2 poles See drawings
E90 125 3 poles
E90 125 3 poles + N
E90 30 Class J 1 pole
E90 30 Class J 2 poles See drawings
E90 30 Class J 3 poles
E90 60 Class J 1 pole
E90 60 Class J 2 poles See drawings
E90 60 Class J 3 poles
ILTS-E 1 pole 1.5 27
ILTS-E 2 poles 3 54
44 70 70 90
ILTS-E 3 poles 4.5 81
ILTS-E 4 poles 6 108
SQZ3 3 52.5 44 58 58 85
RH/RL 3 52.5 44 58 58 85
E 236 US1 2 35 44 60 65 87
E 236 US2
E 236 US1.1
E 236 US2.1 1 17.5 44 60 60 87
E 236 US1.1D
Isoltester-DIG 6 105 44 56 61 90
Selvtester-24 3 52.5 44 58 58 85.5
QSD See drawings
TI See drawings
QSO See drawings
ISL-A 115
ISL-A 230 6 105 44 58 65 90
ISL-A 600
ISL-C 600
ISL-A 24-28
ISL-C 230
3 52.5 44 58 65 85.5
ISL-C 440
ISL-MOT 1000
