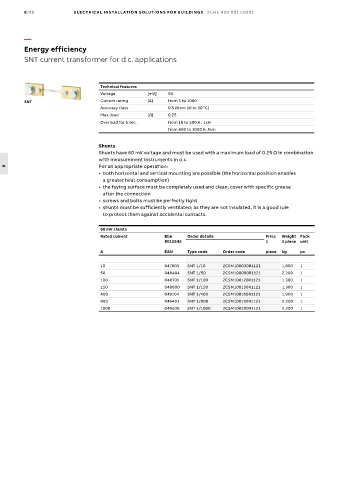

Energy efficiency
SNT current transformer for d.c. applications

Technical features
Voltage [mV] 60
SNT Current rating [A] from 5 to 1000
Accuracy class 0.5 (from 10 to 30 °C)
Max. load [Ω] 0.25
Overload for 5 sec. from 10 to 500 A : 1xIn
from 600 to 1000 A: 5xIn

Shunts
Shunts have 60 mV voltage and must be used with a maximum load of 0.25 Ω in combination
with measurement instruments in d.c.
For an appropriate operation:
8
• both horizontal and vertical mounting are possible (the horizontal position enables
a greater heat consumption)
• the faying surface must be completely used and clean; cover with specific grease
after the connection
• screws and bolts must be perfectly tight
• shunts must be sufficiently ventilated; as they are not insulated, it is a good rule
to protect them against accidental contacts.

60 mV shunts
Rated current Bbn Order details Price Weight Pack
8012542 1 1 piece unit

A EAN Type code Order code piece kg pc.

10 047803 SNT 1/10 2CSM100030R1121 1.800 1
50 048404 SNT 1/50 2CSM100090R1121 2.200 1
100 048701 SNT 1/100 2CSM100120R1121 1.300 1
150 048800 SNT 1/150 2CSM100130R1121 1.300 1
400 049104 SNT 1/400 2CSM100160R1121 1.900 1
800 049401 SNT 1/800 2CSM100190R1121 2.200 1
1000 049500 SNT 1/1000 2CSM100200R1121 2.200 1
