Page 207 - SACE Tmax XT - Technical Catalogue
P. 207

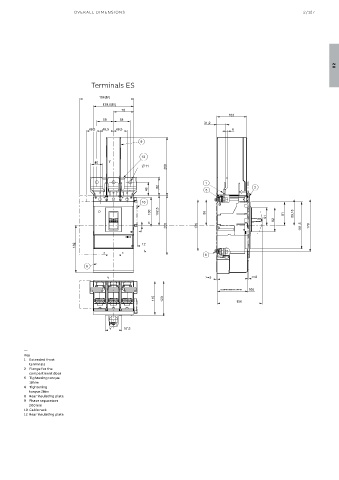

OVER ALL DIMENSIONS 2/127
02
Terminals ES
186(IV)
139,5(III)
70
103
58 58
31,2
46,5 46,5 46,5 6
9
12
40 Y
11 200
1
62 2
46 5
10
100 102,5 88 81 89,18
61
2
X 8
205 176 161,5 179
4
162 12
6
8
Y >=3 <=2
COMPARTMENT DEPTH 108
115 120 156
Y 57,5
—
Key
1 Extended front
terminals
2 Flange for the
compartment door
5 Tightening torque
18Nm
6 Tightening
torque 2Nm
8 Rear insulating plate
9 Phase separators
200mm
10 Cable rack
12 Rear insulating plate
