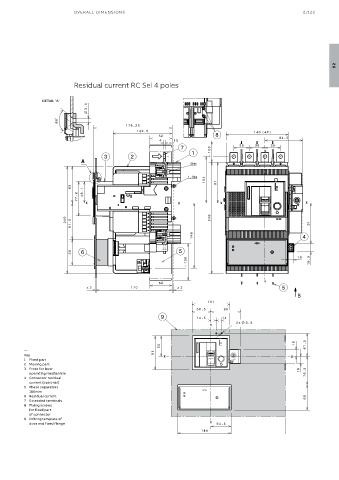

OVER ALL DIMENSIONS 2/123
02
Residual current RC Sel 4 poles
DETAIL "A"
—
Key
1 Fixed part
2 Moving part
3 Front for lever
operating mechanism
4 Connector residual
current (optional)
5 Phase separators
100mm
6 Residual current
7 Extended terminals
8 Fixing screws
for fixed part
of connector
9 Drilling template of
door and fixed flange
