2/132 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

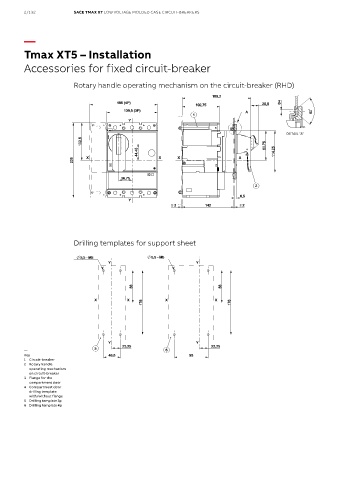

Tmax XT5 – Installation

Accessories for fixed circuit-breaker

Rotary handle operating mechanism on the circuit-breaker (RHD)

DETAIL "A"

Drilling templates for support sheet

—
Key
1 Circuit-breaker
2 Rotary handle
operating mechanism
on circuit-breaker
3 Flange for the
compartment door
4 Compartment door
drilling template
with/without flange
5 Drilling template 3p
6 Drilling template 4p
