2/122 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

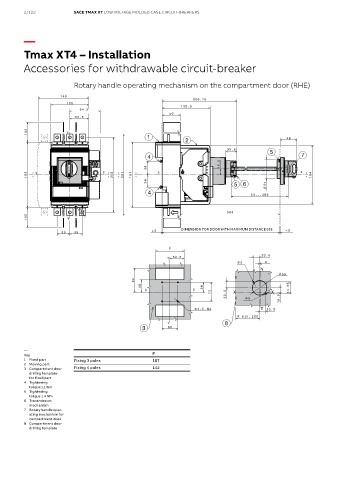

Tmax XT4 – Installation

Accessories for withdrawable circuit-breaker

Rotary handle operating mechanism on the compartment door (RHE)

1
2

5
4 7

5 6
4

DIMENSION FOR DOOR WITH MAXIMUM DISTANCE 633

F

8

—
Key F
1 Fixed part Fixing 3 poles 107
2 Moving part
3 Compartment door Fixing 4 poles 142
drilling template-
for fixed part
4 Tightening
torque 1.1 Nm
5 Tightening
torque 1.4 Nm
6 Transmission
mechanism
7 Rotary handle oper-
ating mechanism for
compartment door
8 Compartment door
drilling template
