Page 213 - SACE Tmax XT - Technical Catalogue
P. 213

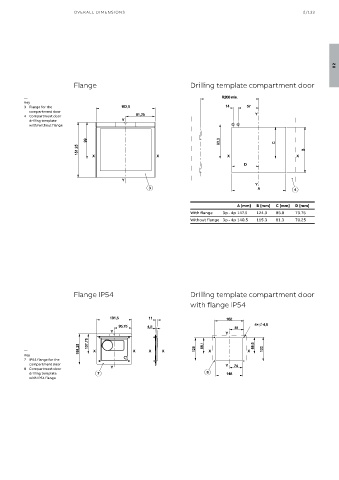

OVER ALL DIMENSIONS 2/133
02
Flange Drilling template compartment door
—
Key
3 Flange for the
compartment door
4 Compartment door
drilling template
with/without flange
A [mm] B [mm] C [mm] D [mm]
With flange 3p - 4p 147.5 124.3 85.8 73.75
Without flange 3p - 4p 140.5 115.3 81.3 70.25
Flange IP54 Drilling template compartment door
with flange IP54
—
Key
7 IP54 flange for the
compartment door
8 Compartment door
drilling template
with IP54 flange
