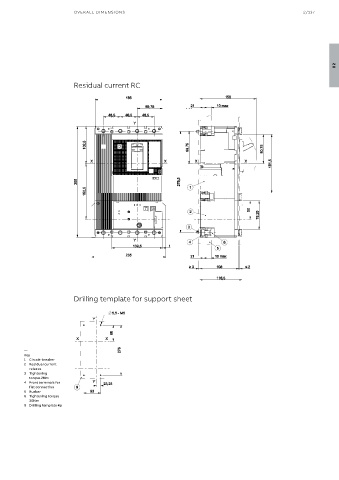

OVER ALL DIMENSIONS 2/137
02
Residual current RC
Drilling template for support sheet
—
Key
1 Circuit-breaker
2 Residual current
release
3 Tightening
torque 2Nm
4 Front terminals for
flat connection
5 Busbar
6 Tightening torque
36Nm
9 Drilling template 4p
